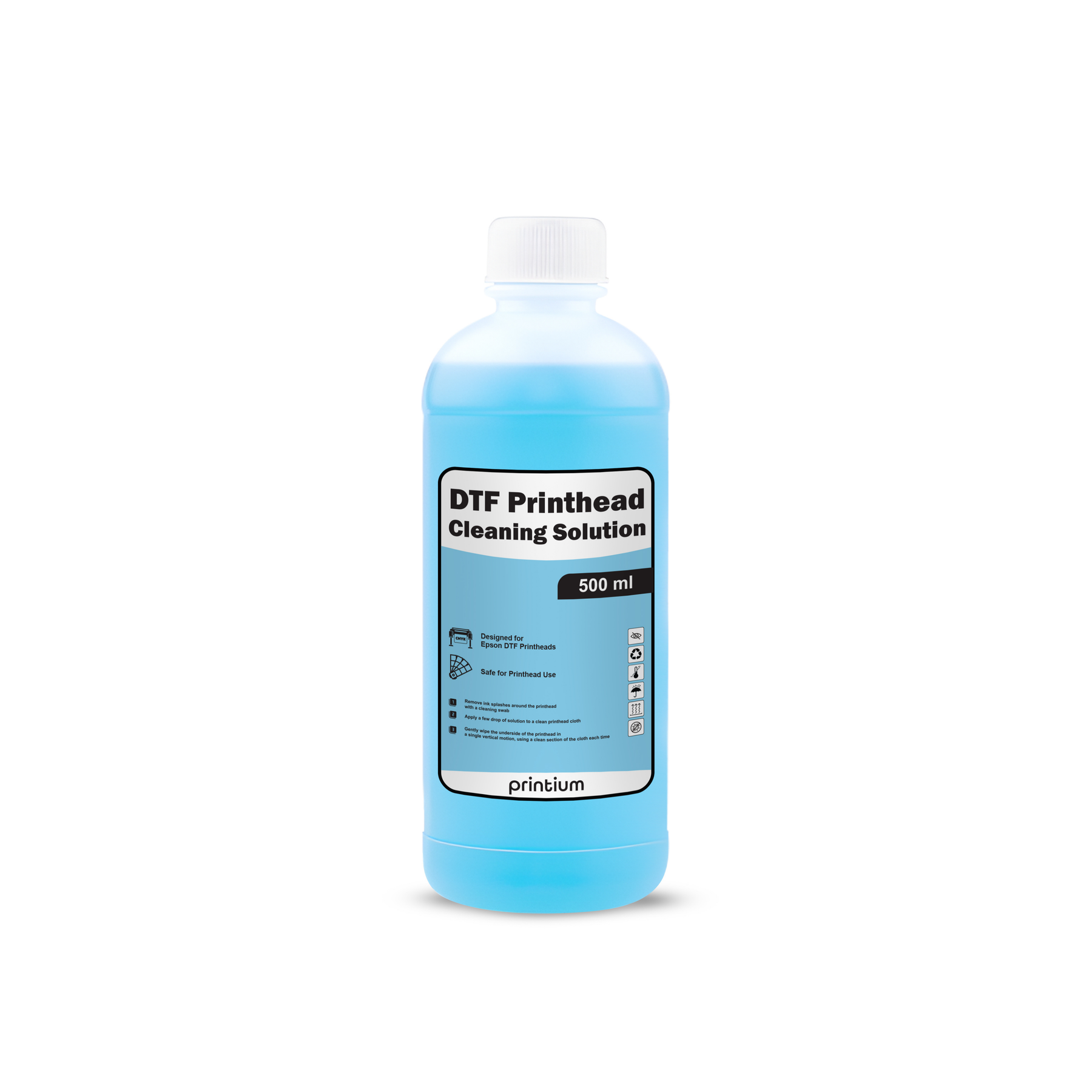

DTF Printhead Cleaning Solution 500 ml (16.9 fl oz)

The Ultimate Shield for Your Equipment DTF Printhead Cleaning Solution

Maintaining a high-performance printing environment is a complex task. Cleaning Solution It requires more than just high-quality ink and film. The heart of any digital garment decoration setup is the printhead. This delicate component delivers microscopic ink droplets with absolute precision. However, the specialized nature of pigment inks makes maintenance mandatory.

The DTF Printhead Cleaning Solution 500 ml (16.9 fl oz) is your first line of defense. It protects against clogs and hardware failure. By integrating this professional-grade solvent into your routine, you ensure steady production. You prevent your workflow from grinding to a halt due to technical issues. Consistent care is the only way to avoid preventable downtime.

Understanding the Chemistry of DTF Ink Maintenance

Direct-to-Film printing utilizes unique white and CMYK inks. These inks contain a high density of solid pigments. These pigments provide the vibrancy and opacity we love. However, they also tend to settle and dry quickly when exposed to air. This chemical behavior requires a specific solution.

• Effective Pigment Dissolution: This cleaning solution breaks down dried ink particles. It does so without damaging the internal membranes of the printhead. It specifically targets the binders in the ink that cause stubborn blockages.

• Safe Solvent Concentration: Many harsh industrial chemicals can corrode sensitive electronics. This 500 ml bottle contains a balanced formula. It is strong enough to clear a clog but gentle enough for daily procedures.

• Prevention of Sedimentation: Regular use prevents the buildup of sediment within the dampers. It also keeps the capping station clean. This ensures the entire ink delivery system flows smoothly. The ink moves without resistance from the tank to the nozzle plate.

Strategic Applications for Daily and Weekly Maintenance

A proactive approach to machine health is vital. It will save you thousands of dollars in replacement parts. Proper care extends the life of your printer significantly.

1. Daily Capping Station Care: Apply a few drops to the capping station sponge before shutting down. This is a best practice for every operator. It keeps the printhead surface moist. This prevents ink from "skinning over" in the nozzles overnight.

2. Weekly Flush Procedures: A weekly flush is essential for shops that do not print every day. Pushing the solution through the lines removes any stagnant ink. This ensures your printer is ready for big projects at any time.

3. Emergency Recovery: Missing lines in your nozzle check indicate a problem. This solution acts as a powerful emergency recovery tool. Soaking the printhead in a shallow bath can often revive hardware. It saves heads that were previously thought to be permanently damaged.

Maximizing the Lifespan of Your High-End Hardware

The principles of cleanliness remain the same for all machines. Whether you use a desktop unit or an industrial printer, care matters. A clean printhead is always a precise printhead.

When nozzles are partially blocked, the ink trajectory shifts. This leads to "overspray" or blurry edges on your designs. This is particularly noticeable when printing fine details. If you use a UV Gang Sheet Builder for small logos, you need total clarity.

By using a dedicated cleaning solution, you maintain sharp and crisp edges. This defines professional-grade work in a competitive market. Furthermore, a clean system reduces automatic cleaning cycles. The printer performs fewer internal flushes. This actually saves you money. You reduce the amount of expensive ink wasted during those cycles.

Compatibility and Versatility in the Modern Print Shop

This solution is not just for one type of machine. It is a versatile tool for various digital printing applications. It is fully compatible with most piezo-electric printheads. This includes popular Epson-based models used in the industry.

Beyond the printhead, this solution is excellent for cleaning wiper blades. It also works well for the surrounding carriage area. Keeping these parts clean prevents debris transfer. It stops dried particles from falling back onto the wet printhead.

If you run equipment like a Semi-Automatic Heat Press, you know the stakes. The final quality of the press depends on the initial print. A well-maintained printer produces consistent ink layers. This is necessary for a perfect heat transfer bond every time.

Eco-Friendly and User-Safe Formulation

Modern print shops focus on operator health and the environment. This cleaning solution meets those specific needs. The formula is low-VOC (Volatile Organic Compounds). This means it does not release harmful fumes into your workspace.

It is safer for skin contact than traditional industrial thinners. However, gloves are always recommended for professional handling. The 500 ml size is the ideal "sweet spot" for most businesses. It provides enough volume for months of regular maintenance. It does not take up excessive shelf space. It will not expire before you can use it. This ensures you always have fresh cleaning power on hand.

Best Practices for Storage and Handling

Proper storage is key to chemical effectiveness. Always keep the bottle tightly sealed when not in use. This prevents evaporation of the active ingredients. Store the bottle in a cool, dark place. Keep it away from direct sunlight.

UV rays can slowly degrade the formula. When applying the solution, use lint-free swabs. Specialized cleaning cloths are also a great choice. Never use standard paper towels or cotton balls. These items can introduce fibers into the printhead. Those fibers create more problems than the cleaning solves. Precision tools require precision cleaning methods.

Conclusion: A Small Investment for Major Security

Downtime is the enemy of profit in the custom apparel world. Things move fast, and machines must keep up. The DTF Printhead Cleaning Solution 500 ml (16.9 fl oz) is your best insurance policy. It is cost-effective and highly efficient.

It protects your most expensive hardware components. It ensures the highest possible print quality for your customers. It gives you the peace of mind to take on large orders. You won't have to fear mechanical failure in the middle of a job.

By committing to a regular schedule, you elevate your shop's standards. You ensure that every DTF Transfer By Size meets high expectations. Don't wait for a clog to ruin your day. Stay ahead of the curve. Keep your ink flowing perfectly with the right professional cleaning solution.

The secret to a high-quality print starts with the right fabric choice. To achieve a professional look and extend the life of your designs, you can choose from our specially selected Blank T-Shirts collection. These garments are optimized for DTF transfers, ensuring your artwork achieves maximum vibrancy and long-lasting durability on every press.

Model: Pressly HYDRO1620 Hydraulic Head Moving Heat Press

Platen Size and Quantity: 15.7x19.7 inches (40x50 cm), 2 platens in total

Attachments: 2 laser attachments with small adhesive cable organizers

Product Weight: 463 lbs (210 kg)

Product Dimensions: Length: 36 inches, Width: 31 inches, Height: 54 inches

Package Weight: 551 lbs (250 kg)

Package Dimensions: Length: 39 inches, Width: 37 inches, Height: 57 inches

Power Requirements: 110V, 2KW, 20A

Electrical outlets: 2 convenient electrical outlets located on the back for powering laser attachments

Temperature Range: 80 - 500°F

Timer Range: 1 - 999 seconds

Pressure Range: 0-16 MPa, 0-1102 lbs

Heat Distribution: Thick heat plate design for stable, even heating across the surface

Recommended Hydraulic Oil: AW-46 ydraulic oil (not included)

Oil Tank Capacity: 5.3 gallons (20 liters)

• Pressly HYDRO1620 - Hydraulic Head Moving Heat Press
• Magnetic Laser Guide Attachments (2 pcs)
• 1-year limited warranty
• USA based support via phone or email

This product is shipped in a crate weighing approximately 530 lbs. We recommend having a pallet jack available at the delivery address to safely move the heat press to its intended location for unpacking and setup.

Important Delivery Instructions for the Hydro1620 Hydraulic Heat Press
The Hydro1620 Hydraulic Heat Press must arrive securely packaged in a sealed wooden crate, unless otherwise stated or pre-arranged.

If the crate or product is visibly damaged upon delivery:
DO NOT accept the delivery immediately.

Instead, follow these steps carefully:

1. Ask the delivery driver to document the damage by writing a Damage Report.

2. Take clear photos of the damaged crate/product and the Damage Report.

3. Do not sign the Proof of Delivery (POD) without marking the crate or product as "DAMAGED".

4. Notify us immediately via phone or email.



⚠️ IMPORTANT: If damage is not clearly indicated on the Proof of Delivery (POD) at the time of receipt, we will not be able to file a claim with the carrier. This will result in no compensation or replacement. Your compliance with this process is essential.


Setup: Place the Pressly HYDRO1620 on a stable surface, ensuring proper power connection based on the power specifications. Before first use, fill the hydraulic system with the recommended hydraulic oil and quantity. Add at least 3 gallons of AW-46 hydraulic oil.

Temperature & Pressure Settings: Set the temperature and hydraulic pressure settings according to the material being used.

Design Alignment: Attach the magnet laser light guides to the top of the heat press to assist in precise alignment of designs.

Pressing: Place the garment or media on the platen, apply the correct pressure, and apply heat according to the required time and temperature settings.

Maintenance: Regularly check and clean the platen and hydraulic system to ensure smooth operation and prolong the life of the heat press. Check the hydraulic oil level regularly using the sight gauge located at the bottom right of your heat press. If the level is below the 50% of the glass, top it up. Be sure to change all the oil once a year, and always use the recommended AW-46 hydraulic oil for optimal performance.

The Pressly Hydro1620 Hydraulic Heat Press comes with a 1-year warranty, effective from the date of purchase. The warranty covers non-consumable components only, provided the equipment is used under normal conditions and maintained properly.

Covered Under Warranty:

• Control board and internal electronics
• Hydraulic pump, motor, and other components of the hydraulic system
• Structural mechanical parts (excluding cosmetic damage or abuse)
• Platen mounts and base metals

Excluded From Warranty (Consumable Components)
The following items are considered consumables and are not covered under this warranty:

• Pressure pads, high-temperature texturizing sheets, laser attachments, platen covers, silicone rubber mats
• Fuses, power cords, buttons, and exterior casings
• Parts subject to normal wear-and-tear or improper storage
• Any components damaged due to misuse or environmental conditions (e.g., dust, heat, moisture)

Support During the Warranty Period

• Eagle Print will provide remote technical support via email, phone, or video.
• When possible, video tutorials or repair instructions will be provided.
• Replacement parts for issues covered under warranty will be shipped depending on availability and after evaluation. The customer will not be charged for eligible replacement parts covered under the warranty; however, the customer is responsible for the shipping costs.
• This warranty does not include on-site service or labor.

Important Delivery Instructions for the Hydro1620 Hydraulic Heat Press
The Hydro1620 Hydraulic Heat Press must arrive securely packaged in a sealed wooden crate, unless otherwise stated or pre-arranged.

If the crate or product is visibly damaged upon delivery:
DO NOT accept the delivery immediately.

Instead, follow these steps carefully:

1. Ask the delivery driver to document the damage by writing a Damage Report.

2. Take clear photos of the damaged crate/product and the Damage Report.

3. Do not sign the Proof of Delivery (POD) without marking the crate or product as "DAMAGED".

4. Notify us immediately via phone or email.



⚠️ IMPORTANT: If damage is not clearly indicated on the Proof of Delivery (POD) at the time of receipt, we will not be able to file a claim with the carrier. This will result in no compensation or replacement. Your compliance with this process is essential.


Shipping Damage & Insurance Claims
Eagle Print is not responsible for damage sustained during shipment. However, all products are shipped with insurance. If the Customer receives a damaged unit:

• The Customer must report the issue immediately (preferably within 24 hours).
• Eagle Print will assist in submitting an insurance claim with the shipping provider.
• Claims and resolutions may take up to 50–60 business days depending on carrier response.
• Clear photos, videos, and a damage description may be required for claim submission.

Warranty Limitations and Exclusions
This warranty does not apply to issues resulting from:

• Improper setup or use outside of intended purpose
• Unauthorized modifications or attempted repairs
• Use in unsuitable environments (e.g., excessive heat, humidity, or dust)
• Use of incorrect fluids, voltage, or replacement parts
• Accidents, neglect, or failure to follow maintenance guidelines

Final Sale Terms
This product is sold as a final sale item. No returns or refunds are accepted except for qualifying issues covered under this warranty. By purchasing and using this product, the customer acknowledges and agrees to the warranty terms stated in this section.

Warranty Assistance
For all warranty-related inquiries, support, or part requests, the customer should contact Eagle Print directly with:

• Order Number
• Order Email
• Description of the issue (photos/videos if possible)
