How often should I perform a nozzle check on my DTF printer?

You should perform a nozzle check every single morning before starting your production. This ensures that all ink channels are firing correctly. If you leave the printer idle for more than 24 hours, it is even more critical to check for dried ink. Catching a small clog early prevents a permanent blockage that could ruin an expensive printhead.

Why is white ink maintenance more difficult than CMYK colors?

White DTF ink contains titanium dioxide, which is a heavy mineral. Unlike CMYK inks, these particles settle at the bottom of tanks and tubes very quickly, creating a thick sludge. If you don't agitate the white ink daily or use a circulation system, this sediment will clog your dampers and printhead, leading to faded prints or total hardware failure.

When is it time to replace the dampers in my printing system?

As a general rule, dampers should be replaced every 3 to 6 months, even if they appear to be working. Dampers act as filters; over time, microscopic debris builds up inside them, restricting ink flow. If you notice "ink starvation" (colors fading halfway through a long print) or see air bubbles in the lines, it is a clear sign that your dampers are worn out.

5 Critical Maintenance Steps to Extend Your Printer's Lifespan

By Eagle Print · April 01, 2026

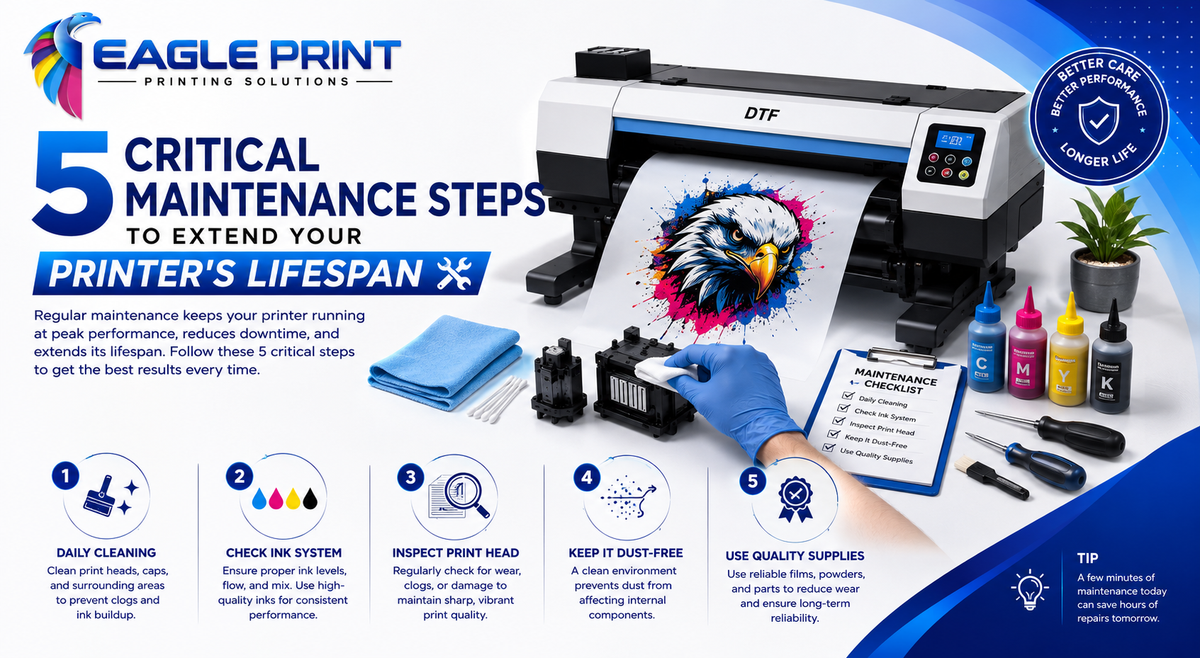

5 Critical Maintenance Steps to Extend Your Printer Lifespan

A DTF printer is a high-performance machine, but it is also sensitive. Without proper care, expensive parts like the printhead can fail in just a few days.

Consistent maintenance is the secret to high-quality prints and a long-lasting machine. Follow these five critical steps to protect your investment and keep your production running.

1. Daily Printhead Nozzle Checks

The printhead is the heart of your printer. If the tiny nozzles get clogged with dried ink, your print quality will drop immediately.

Perform a nozzle check every morning: This confirms all colors are firing correctly before you start a job.
Don't wait for errors: Even if the printer looks fine, a daily check prevents microscopic clogs from hardening.
Clean only when needed: Excessive "head cleanings" via software can actually wear out the head. Only clean if the nozzle check shows gaps.

2. Agitate and Circulate White Ink

White DTF ink contains titanium dioxide. This heavy mineral settles at the bottom of tanks and tubes very quickly.

Shake the tanks: Gently shake your white ink bottles or tanks every single day.
Check the circulation system: If your printer has an automatic circulation feature, ensure it is running 24/7.
Prevent "Sedimentation": If white ink settles, it becomes a thick sludge that can permanently block your dampers and printhead.

3. Clean the Capping Station and Wiper Blade

These two parts are responsible for keeping the printhead moist and clean. If they are dirty, they will actually transfer dried ink back onto the head.

Wipe the Wiper Blade: Use a lint-free swab and specialized cleaning solution to remove ink buildup from the rubber wiper.
Clean the Cap Top: The rubber seal around the capping station must be airtight. If it’s dirty, the printhead will dry out overnight.
Flush the Waste Lines: Occasionally pour a bit of cleaning solution into the cap to ensure the waste ink flows freely to the bottle.

4. Replace Dampers and Filters Regularly

Dampers act as the last line of defense before ink enters the printhead. They filter out tiny particles and regulate ink pressure.

The 3-Month Rule: Even if they look clean, dampers should generally be replaced every 3 to 6 months.
Watch for air bubbles: If you see air in the lines, your dampers might be leaking or clogged.
Regulate Pressure: Old dampers can cause ink "starvation," leading to faded colors during long print runs.

5. Maintain the Encoder Strip and Raster

The encoder strip is the clear plastic ribbon that tells the printhead exactly where it is. If it gets dusty or has ink splatters, your prints will be blurry or misaligned.

Use Isopropyl Alcohol: Gently wipe the strip with a soft cloth and alcohol if you notice "ghosting" or alignment issues.
Be Gentle: The strip is fragile. Scratching it can cause the printer to lose its position entirely.
Dust Prevention: Keep your printer lid closed as much as possible to prevent airborne dust from settling on the sensors.

Summary Checklist for Success

To make maintenance a habit, follow this simple schedule:

Morning: Shake white ink, perform nozzle check, wipe the wiper blade.
Evening: Clean the capping station and ensure the head is parked correctly.
Monthly: Inspect the encoder strip and check waste ink levels.
Quarterly: Replace all dampers and check for tube wear.

Final Thoughts

Maintenance might seem time-consuming, but it is much cheaper than replacing a $1,000 printhead. A clean printer produces better colors, happier customers, and higher profits.
